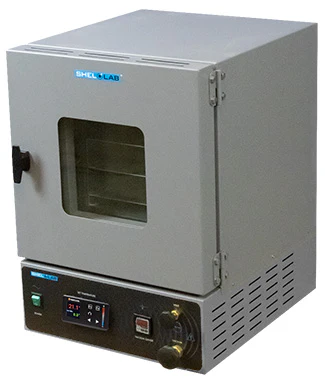

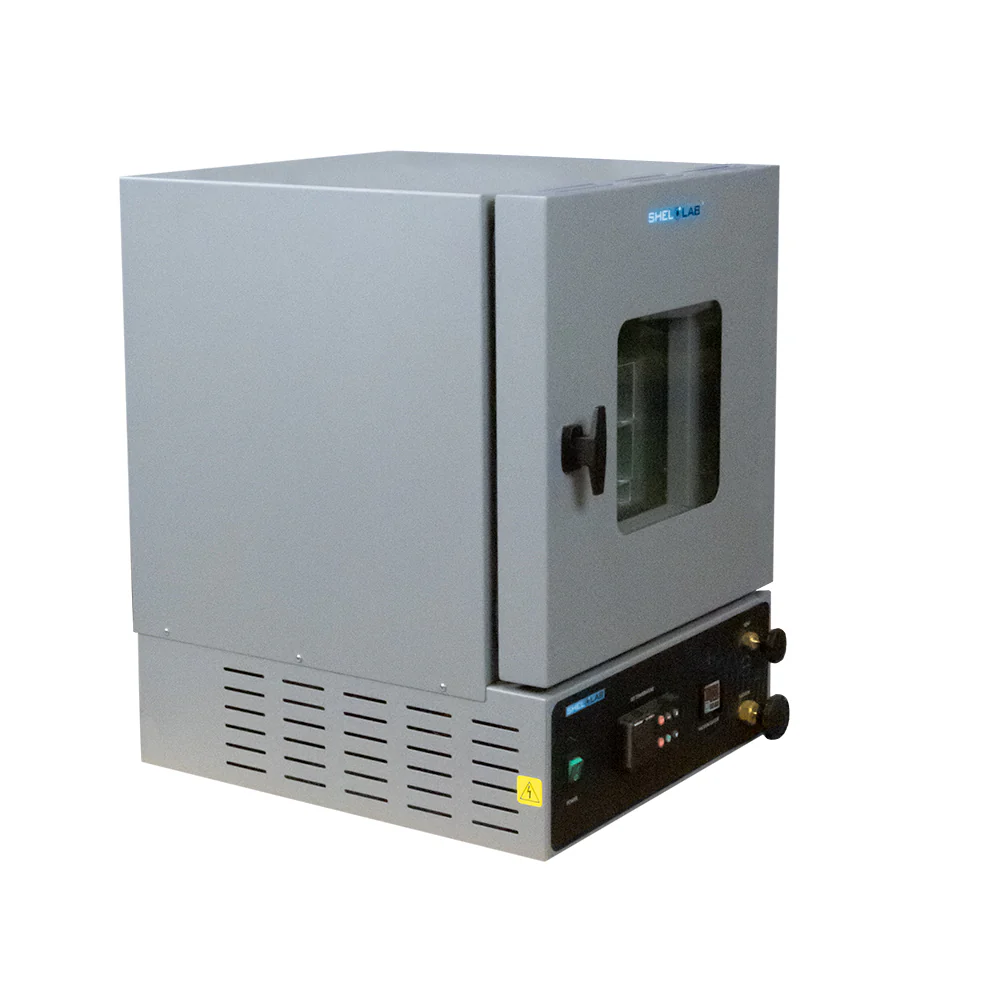

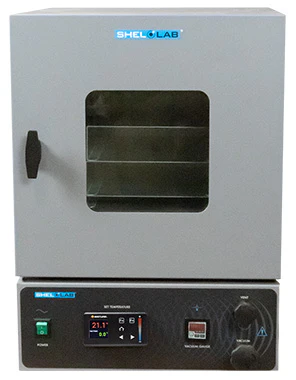

SHEL LAB SVAC1 Vacuum Oven .56FC
SHEL LAB SVAC1 Vacuum Oven 15.9L
Our revamped SHEL LAB SVAC vacuum ovens provide exceptional capabilities for fast and gentle drying of heat-sensitive materials.
Vacuum ovens prevent residue accumulation on products and use lower temperatures than typical convection ovens. Your products are processed with minimal impact and maximum throughput.

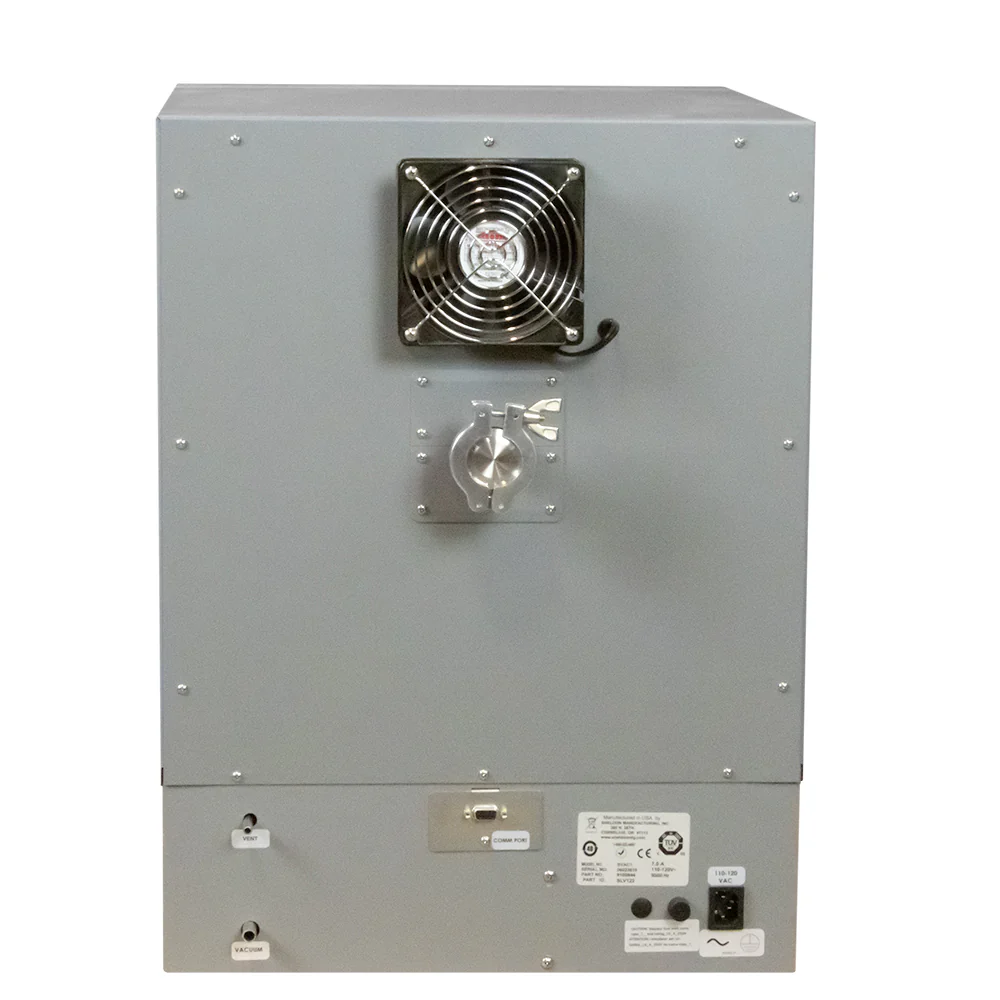

SHEL LAB vacuum ovens have stainless steel interiors and provide exceptional durability and stability. Available in 4 sizes, SVAC Vacuum Ovens support a diverse array of applications. To achieve required vacuum levels, users can choose from a 3/8-inch orifice or a KF-25 fitting to withstand heavy use and minimize draw-down time.

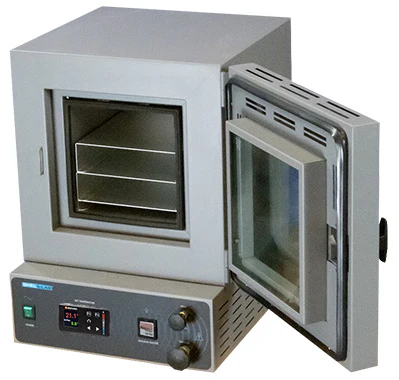

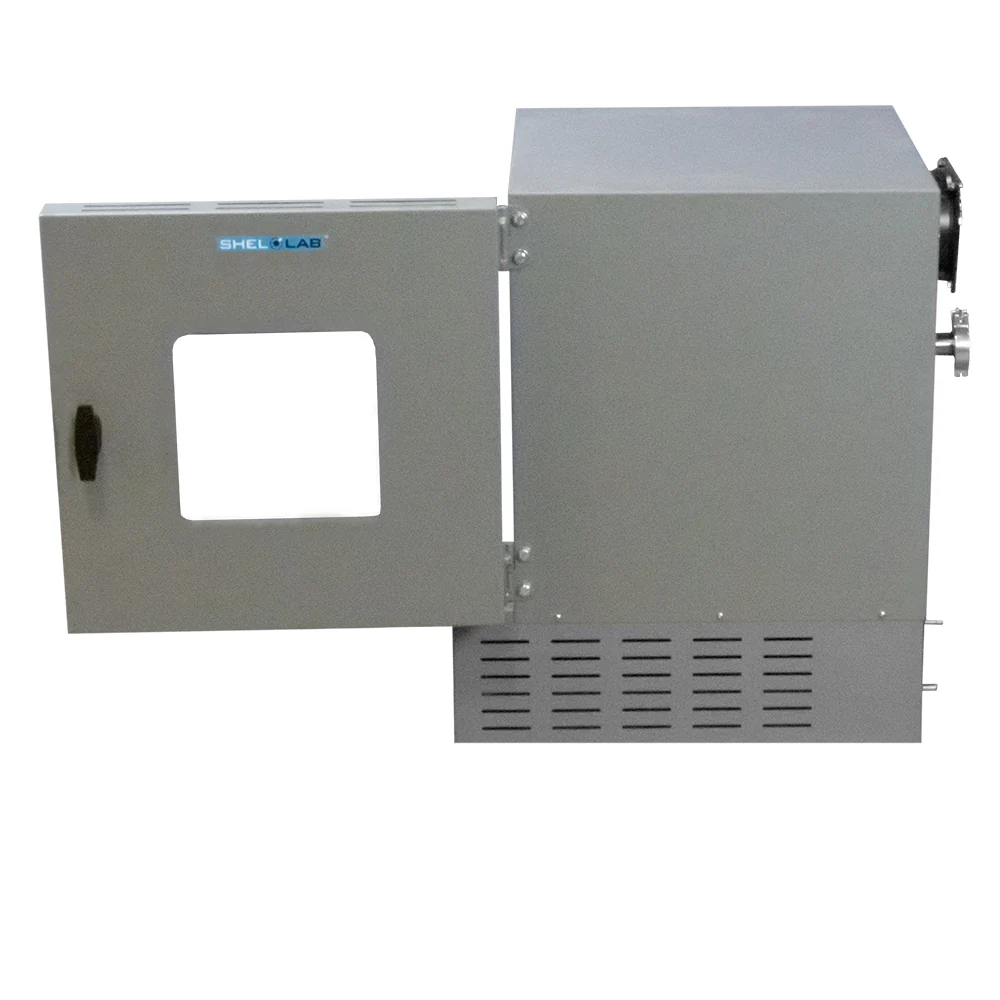

The doors on these units have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life. The tempered glass viewing window allows for safe, continuous monitoring of samples.
SHEL LAB Vacuum Ovens are equipped with silicone gaskets.
Features include:

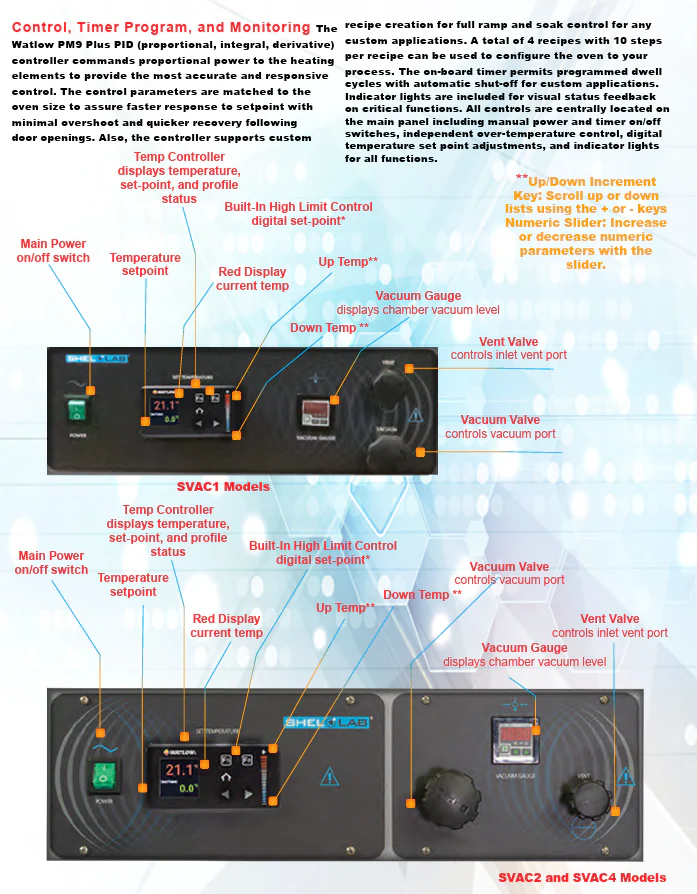

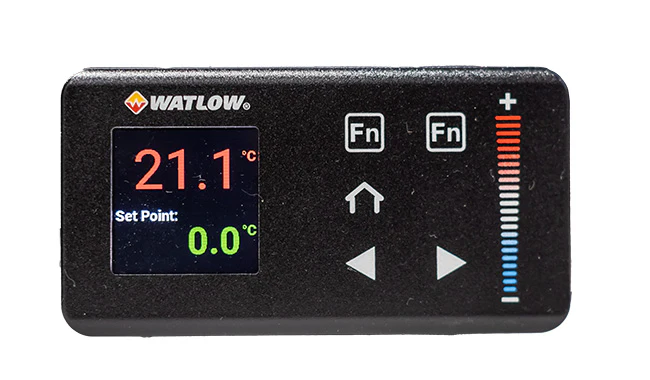

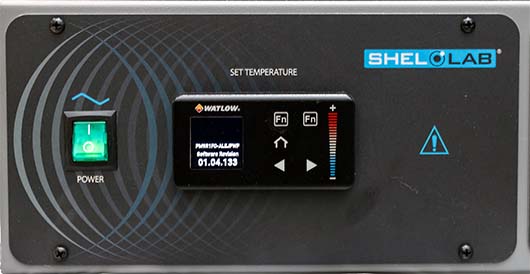

- Watlow PM9 Plus Controller
- Generous Usable Shelf Area
- Achieve Impressive Vacuum Levels
- Sizes Range from 0.6 – 4.5 Cubic Feet
- Built-in Overtemperature Protection
- 24 Month Limited Warranty
Please note that this vacuum oven does not include a pump or related accessories. Contact your SHEL LAB distributor for assistance with choosing the ideal pump and accessories for any application.

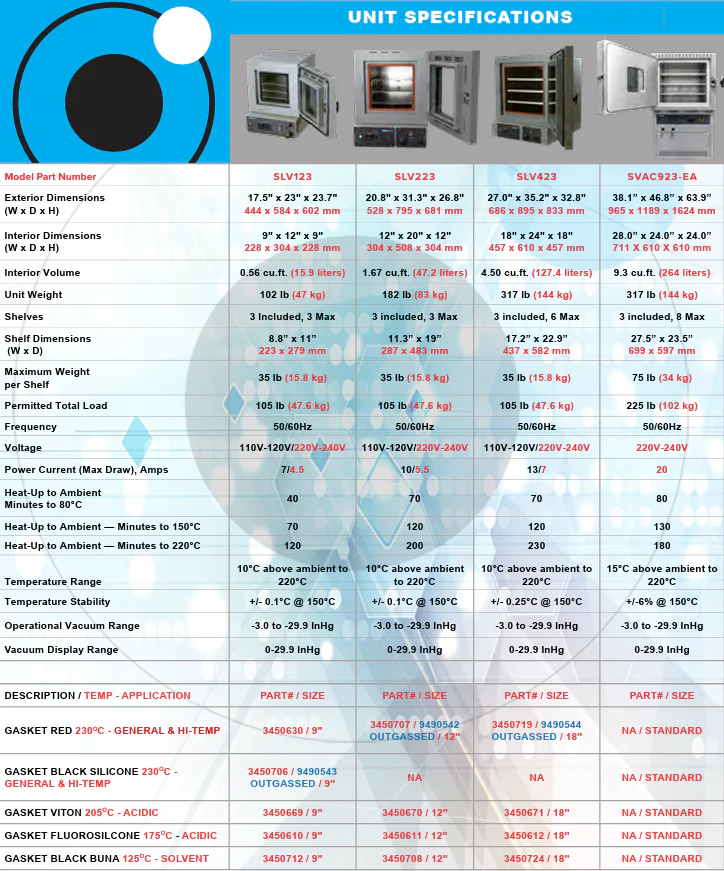

| Temperature Range | Ambient +10°C to 220°C |
| Temperature Stability | ± 0.1°C at 150°C |
| Heat Up Times (From Ambient 20°C) | 80°C: 40 Minutes 150°C: 70 Minutes 220°C: 120 Minutes |
| Operational Vacuum Range | 3.0 to 29.9 inHg (101.6 to 1,012.5 mbar) |
| Vacuum Gauge Range | 0.0 to 29.9 inHg (0.0 to 1,012.5 mbar) |
| Volume | 15.9L (0.56 cu. ft.) |
| Shelves | 3 |
| Max. Shelf Capacity | 3 |
| Max. Shelf Load | 35.0 lb. (15.8 kg) |
| Interior Dimensions (W x D x H) | 9.0 x 12.0 x 9.0 in. (22.8 x 30.4 x 22.8 cm) |
| Exterior Dimensions (W x D x H) | 17.5 x 23.0 x 23.7 in. (44.4 x 58.4 x 60.2 cm) |
| Weight | 102.0 lb. (47.0 kg) |
| Electrical Requirements | 115V AC, 50/60Hz, 5.0A |
