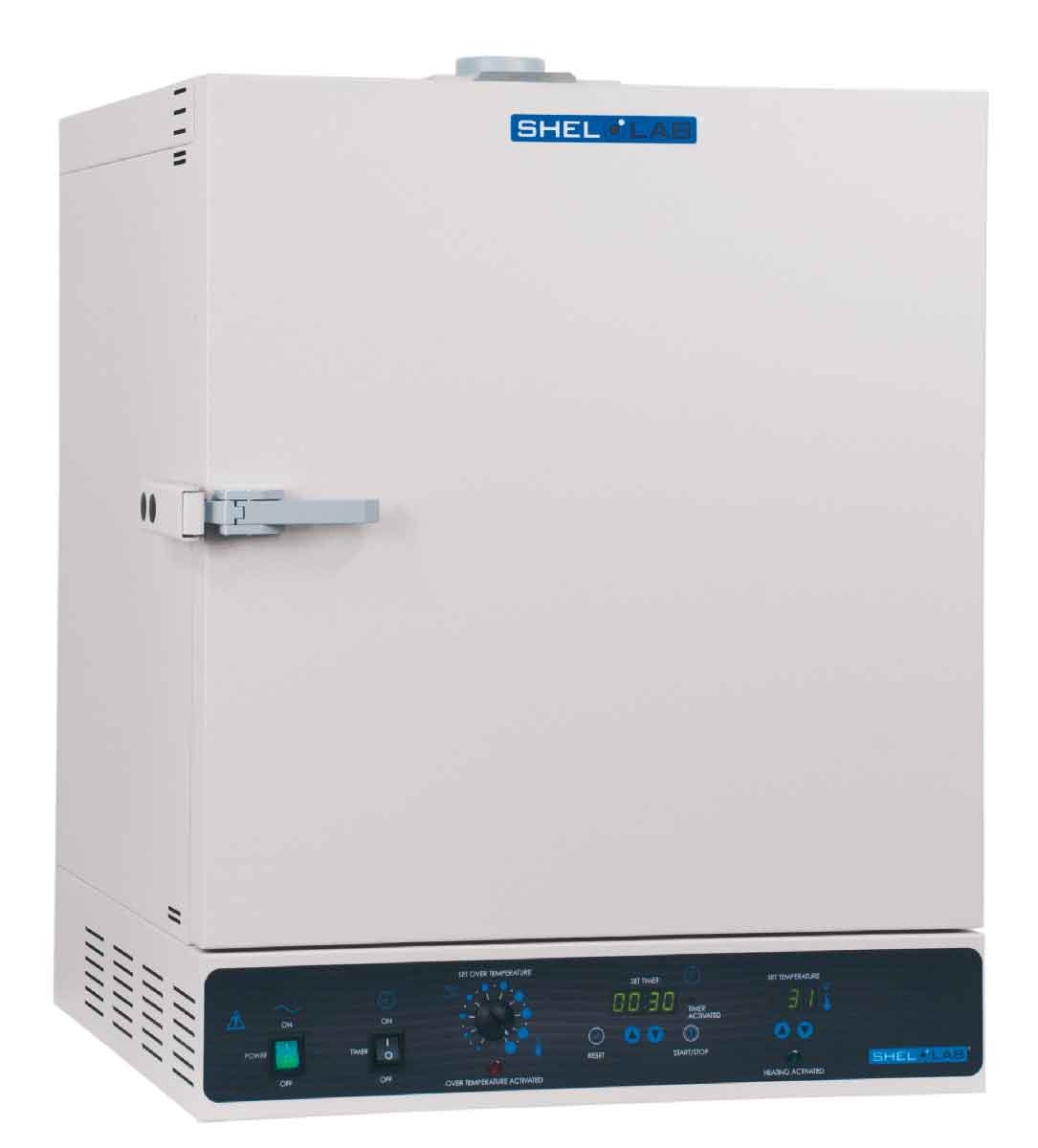

SHEL LAB SMO3 Forced Air Convection Oven 3CF
SHEL LAB SMO3 Forced Air Convection Oven 85L
The SMO3 has a quick ramp-up time to 306°C for faster cycle times. This unit includes an advanced PID temperature control system for sensitive response.
These ovens are recommended for critical and analytical use in laboratory and pilot plant product research. Typical applications for the oven include aging, asphalt testing, curing, drying, pre-heating, conditioning, and life cycle testing.
This unit is equipped with a stainless-steel interior for long-life operation and easy cleaning. Its triple wall construction minimizes external wall temperature which meets CE requirements to keep workspaces cool.
The SMO3 forced air oven delivers precise uniformity, air distribution, and the peace of mind expected of the SHEL LAB brand.
Features of this oven include:
- Embedded Microprocessor Control with Countdown Timer
- Horizontal Forced Airflow
- 1.75in (45mm) Access Port
- UL/CSA Approved
- CE Approval
- DIN 12880 Compliant
- 24 Month Limited Warranty
- Includes 2 Shelves. Holds 7 Total
- Temperature Range +20°C to 306°C
- Temperature Uniformity ± 5.4°C at 306°C
Options:
SMO3: OVEN, FORCED AIR, 3 CU FT, 115V
SMO3-2: OVEN, FORCED AIR, 3 CU FT, 230V
| Temperature Range | Ambient +20°C to 306°C |
| Temperature Uniformity | ± 0.4°C at 80°C ± 1.8°C at 150°C ± 3.2°C at 306°C |
| Temperature Stability | ± 0.3°C at 150°C |
| Heat Up Times (From Ambient 20°C) | 80°C: 6 Minutes 150°C: 27 Minutes 306°C: 81 Minutes |
| Volume | 85.0L (3.0 cu. ft.) |
| Shelves | 2 |
| Max. Shelf Capacity | 7 |
| Max. Shelf Load | 50.0 lb. (22.6 kg) |
| Access Port | 1.75 in. (45 mm) |
| Interior Dimensions (W x D x H) | 16.5 x 19.5 x 16.2 in. (41.9 x 49.5 x 41.2 cm) |
| Exterior Dimensions (W x D x H) | 26.9 x 28.6 x 34.0 in. (68.4 x 72.7 x 84.0 cm) |
| Weight | 170.5 lb. (77.3 kg) |
| Electrical Requirements | 110-120V AC, 50/60Hz, 14.0A |
Select Options
From $3,500.00
SHEL LAB SMO3 Forced Air Convection Oven 3CF—
$3,500.00
Description
SHEL LAB SMO3 Forced Air Convection Oven 85L
The SMO3 has a quick ramp-up time to 306°C for faster cycle times. This unit includes an advanced PID temperature control system for sensitive response.
These ovens are recommended for critical and analytical use in laboratory and pilot plant product research. Typical applications for the oven include aging, asphalt testing, curing, drying, pre-heating, conditioning, and life cycle testing.
This unit is equipped with a stainless-steel interior for long-life operation and easy cleaning. Its triple wall construction minimizes external wall temperature which meets CE requirements to keep workspaces cool.
The SMO3 forced air oven delivers precise uniformity, air distribution, and the peace of mind expected of the SHEL LAB brand.
Features of this oven include:
- Embedded Microprocessor Control with Countdown Timer
- Horizontal Forced Airflow
- 1.75in (45mm) Access Port
- UL/CSA Approved
- CE Approval
- DIN 12880 Compliant
- 24 Month Limited Warranty
- Includes 2 Shelves. Holds 7 Total
- Temperature Range +20°C to 306°C
- Temperature Uniformity ± 5.4°C at 306°C
Options:
SMO3: OVEN, FORCED AIR, 3 CU FT, 115V
SMO3-2: OVEN, FORCED AIR, 3 CU FT, 230V
| Temperature Range | Ambient +20°C to 306°C |
| Temperature Uniformity | ± 0.4°C at 80°C ± 1.8°C at 150°C ± 3.2°C at 306°C |
| Temperature Stability | ± 0.3°C at 150°C |
| Heat Up Times (From Ambient 20°C) | 80°C: 6 Minutes 150°C: 27 Minutes 306°C: 81 Minutes |
| Volume | 85.0L (3.0 cu. ft.) |
| Shelves | 2 |
| Max. Shelf Capacity | 7 |
| Max. Shelf Load | 50.0 lb. (22.6 kg) |
| Access Port | 1.75 in. (45 mm) |
| Interior Dimensions (W x D x H) | 16.5 x 19.5 x 16.2 in. (41.9 x 49.5 x 41.2 cm) |
| Exterior Dimensions (W x D x H) | 26.9 x 28.6 x 34.0 in. (68.4 x 72.7 x 84.0 cm) |
| Weight | 170.5 lb. (77.3 kg) |
| Electrical Requirements | 110-120V AC, 50/60Hz, 14.0A |
