MVP Recovery Pump - XL 150 PSI
MVP Recovery Pump - XL 150 PSI

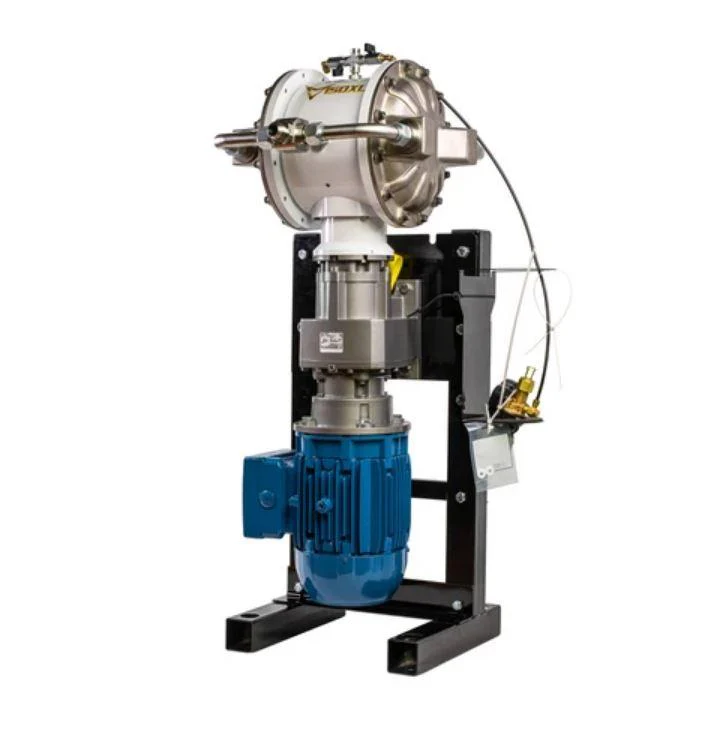

The Master Vapor Pump ModelĀ MVP-150XLĀ is a certified gas recovery pump designed to operate at 150 PSI. It can handle over three times the volume of vapor as ourĀ standard MVP-150.Ā This pump is designed specifically for LP-Gas vapor recovery and is ideal for butane or butane / propane mixtures. Please note that this model of the MVP 150 only comes with Three-phase power options available.Ā
Engineering Specifications:
- Recover LP-Gas vapor at OVER 18 CFM (cubic feet per minute)
- Recover butane at up to 4.5 LB/MIN (pounds per minute)
- Recover and re-condense butane between 35-50 GPH (gallons per hour)
- Electric motor: explosion proof for C1D1 hazardous areas; rated Class I Gr C & D, Class II Gr F&G Electric motor:Ā 5 HP,Ā 1800 RPM, 30 HZ
- Pump speed: 174 CPM (cycles per minute) at 60 HZ
- Size: 17.0ā x 22.8ā base x 46.4ā tall
- Weight: 360.5 lb (163 kg)
Ā All sales Final
Description
MVP Recovery Pump - XL 150 PSI
The Master Vapor Pump ModelĀ MVP-150XLĀ is a certified gas recovery pump designed to operate at 150 PSI. It can handle over three times the volume of vapor as ourĀ standard MVP-150.Ā This pump is designed specifically for LP-Gas vapor recovery and is ideal for butane or butane / propane mixtures. Please note that this model of the MVP 150 only comes with Three-phase power options available.Ā
Engineering Specifications:
- Recover LP-Gas vapor at OVER 18 CFM (cubic feet per minute)
- Recover butane at up to 4.5 LB/MIN (pounds per minute)
- Recover and re-condense butane between 35-50 GPH (gallons per hour)
- Electric motor: explosion proof for C1D1 hazardous areas; rated Class I Gr C & D, Class II Gr F&G Electric motor:Ā 5 HP,Ā 1800 RPM, 30 HZ
- Pump speed: 174 CPM (cycles per minute) at 60 HZ
- Size: 17.0ā x 22.8ā base x 46.4ā tall
- Weight: 360.5 lb (163 kg)
