300L ASME Single Jacket Solvent Tank 350psi Max - Bare
300L ASME Single Jacket Solvent Tank 350psi Max - Bare

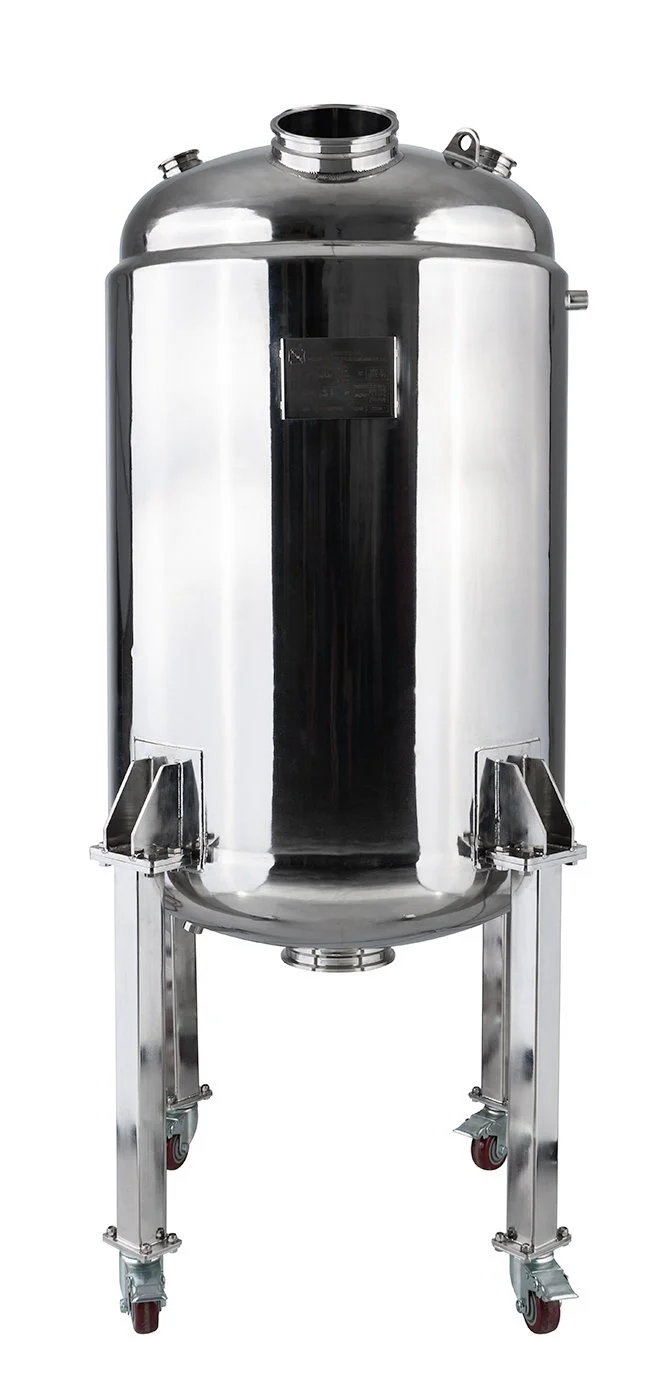

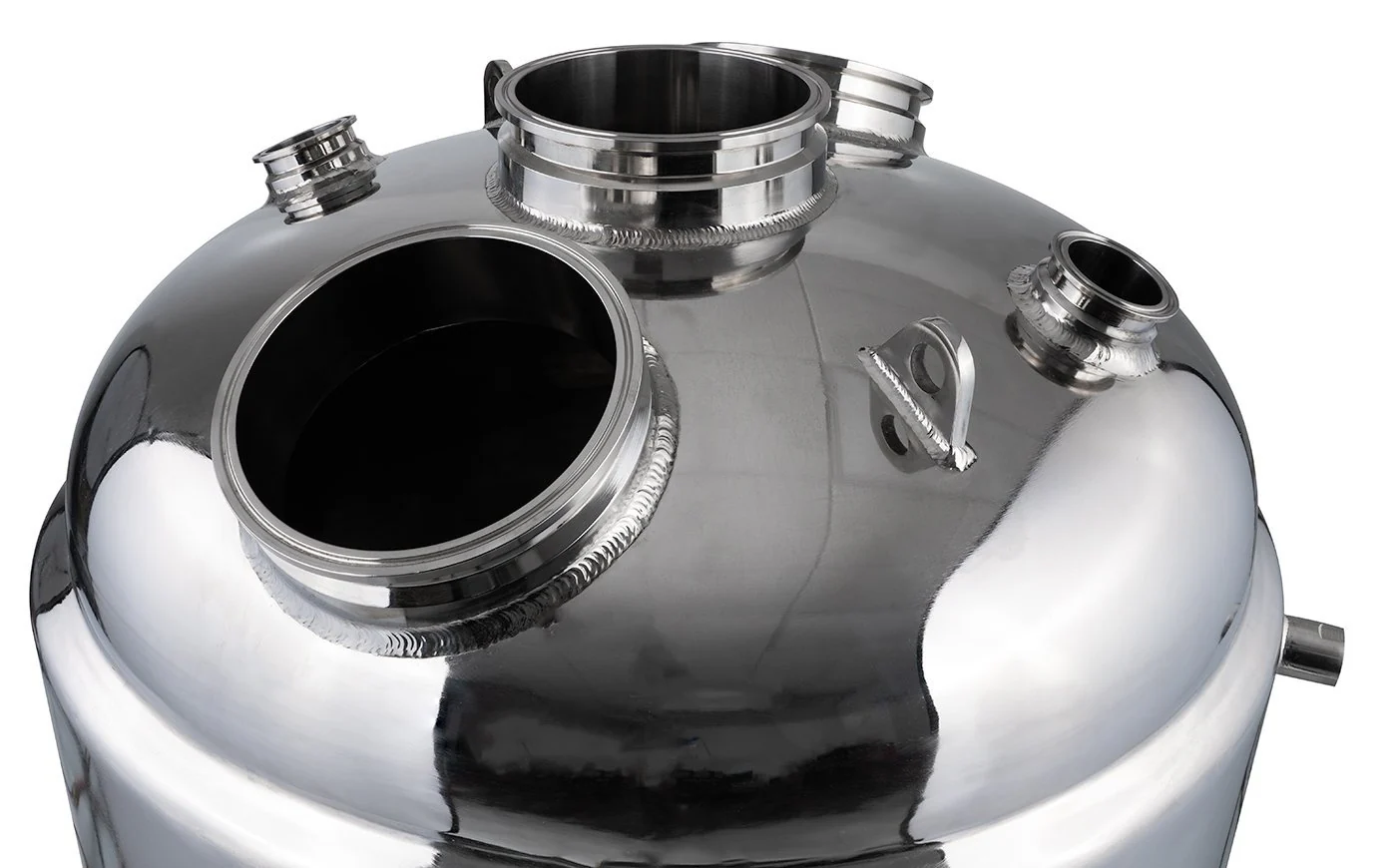

This is a custom manufactured made ASME Certified 300L Jacketed Solvent Tank with ASME Stamp and made out of 304 Stainless Steel. This base is designed to be configured to any application and can even be used as a solvent tank. This tank comes bare with no fittings and will hold 300LBS of liquid butane and is able to have fluid circulated around the outer jacket to increase recovery speeds in the extraction system. This unit also has welded lift points on the top of the tank.
**This Item will ship Via FREIGHT ONLY.
| Specifications | |
| Material | 304 Stainless Steel |
| Certification: |
ASME |
| MAWP @ 100°C / 212°F: | |
| Inside | 350 PSI / 2.42 MPa |
| Jacket | 150 PSI / 1.1 MPa |
| MDMT | -40°C / -40°F |
| MIN TEMP | -20°F at 350PSI |
| Butane Capacity | 300LBS |
| Connection Sizes: | (3) 6" Tri-Clamp |
| (2) 2" Tri-Clamp | |
| (2) 1/2" FNPT | |
| Weight | 750LBS |
| Outer Dimensions: | 64" Tall |
| 32" W x 32" L | |
Description
300L ASME Single Jacket Solvent Tank 350psi Max - Bare
This is a custom manufactured made ASME Certified 300L Jacketed Solvent Tank with ASME Stamp and made out of 304 Stainless Steel. This base is designed to be configured to any application and can even be used as a solvent tank. This tank comes bare with no fittings and will hold 300LBS of liquid butane and is able to have fluid circulated around the outer jacket to increase recovery speeds in the extraction system. This unit also has welded lift points on the top of the tank.
**This Item will ship Via FREIGHT ONLY.
| Specifications | |
| Material | 304 Stainless Steel |
| Certification: |
ASME |
| MAWP @ 100°C / 212°F: | |
| Inside | 350 PSI / 2.42 MPa |
| Jacket | 150 PSI / 1.1 MPa |
| MDMT | -40°C / -40°F |
| MIN TEMP | -20°F at 350PSI |
| Butane Capacity | 300LBS |
| Connection Sizes: | (3) 6" Tri-Clamp |
| (2) 2" Tri-Clamp | |
| (2) 1/2" FNPT | |
| Weight | 750LBS |
| Outer Dimensions: | 64" Tall |
| 32" W x 32" L | |
