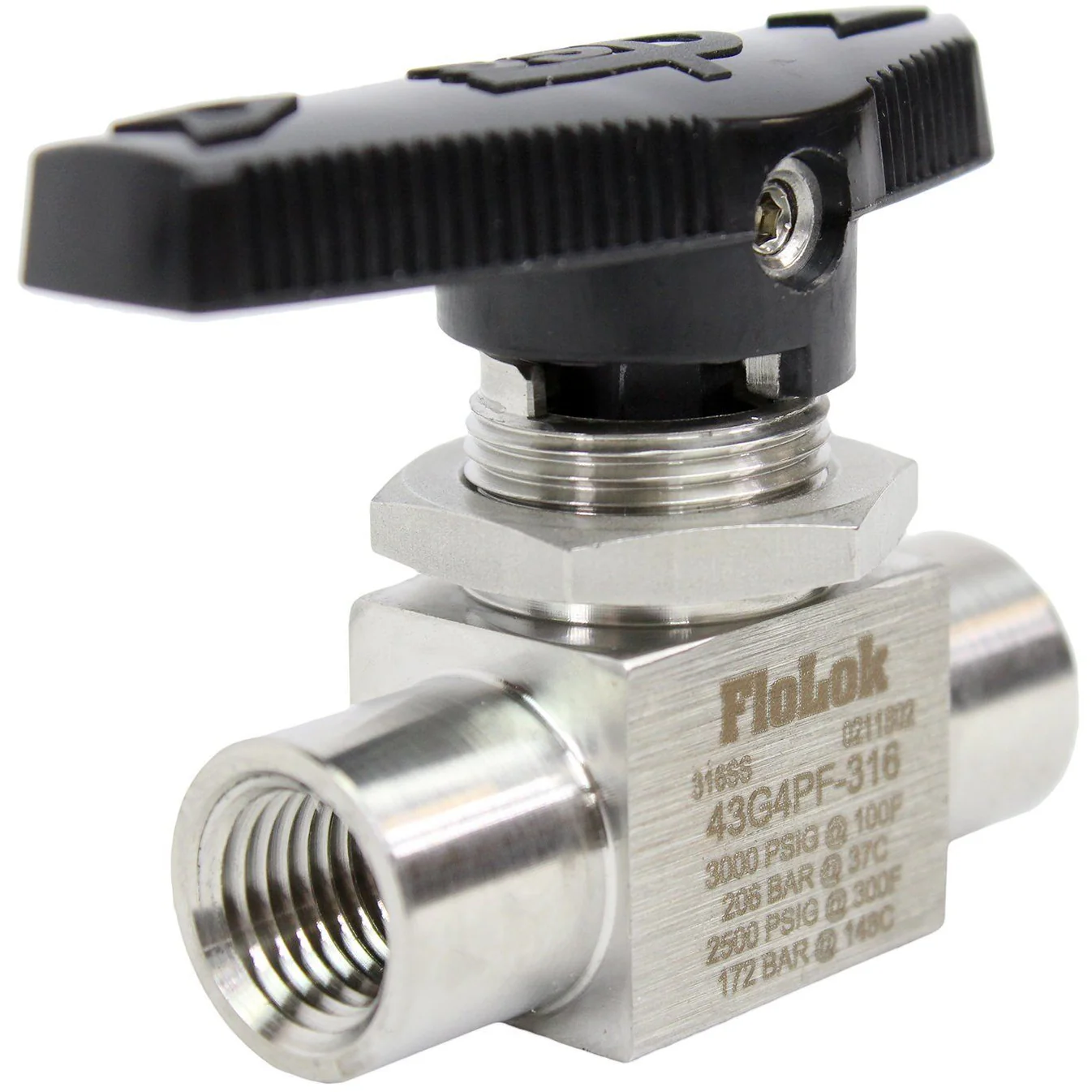

2 Way Ball Valve - Female NPT
2 Way Ball Valve - Female NPT
SSP Instrumentation Flolok® manually operated two-way ball valves provide quick ¼ turn directional flow control of fluids in instrumentation and process systems.
Features:
- Directional handle indicates flow direction
- Panel Mountable
- 90-degree actuation
- Straight through flow path
- Micro finished ball provides a positive seal
- Free-floating ball design provides compensation for seat wear for repetitive sealing
- Blow-out proof ball & stem
- Standard Product Testing - Every ball valve is assembled and tested @ 1000 psig (68.9 bar) with Nitrogen
| Specifications | |
|---|---|
| Body Material | 316 Stainless Steel |
| Temp Rating | -53C to 148C |
| Pressure Rating @100F |
3000 PSIG |
| @37C | 208 BAR |
| @300F | 2500 PSIG |
| @148C | 172 BAR |
| Connection Type 1 | Female NPT |
| Connection Size 1 | Specified by User |
| Connection Type 2 | Female NPT |
| Connection Size 2 | Specified by User |
| Handle Type | Nylon-Stainless Steel Insert |
| Handle Color | Black |
| Packing Material | PTFE |
SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!
Select Size
From $59.50
Original: $170.00
-65%2 Way Ball Valve - Female NPT—
$170.00
$59.50
Description
2 Way Ball Valve - Female NPT
SSP Instrumentation Flolok® manually operated two-way ball valves provide quick ¼ turn directional flow control of fluids in instrumentation and process systems.
Features:
- Directional handle indicates flow direction
- Panel Mountable
- 90-degree actuation
- Straight through flow path
- Micro finished ball provides a positive seal
- Free-floating ball design provides compensation for seat wear for repetitive sealing
- Blow-out proof ball & stem
- Standard Product Testing - Every ball valve is assembled and tested @ 1000 psig (68.9 bar) with Nitrogen
| Specifications | |
|---|---|
| Body Material | 316 Stainless Steel |
| Temp Rating | -53C to 148C |
| Pressure Rating @100F |
3000 PSIG |
| @37C | 208 BAR |
| @300F | 2500 PSIG |
| @148C | 172 BAR |
| Connection Type 1 | Female NPT |
| Connection Size 1 | Specified by User |
| Connection Type 2 | Female NPT |
| Connection Size 2 | Specified by User |
| Handle Type | Nylon-Stainless Steel Insert |
| Handle Color | Black |
| Packing Material | PTFE |
SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!
