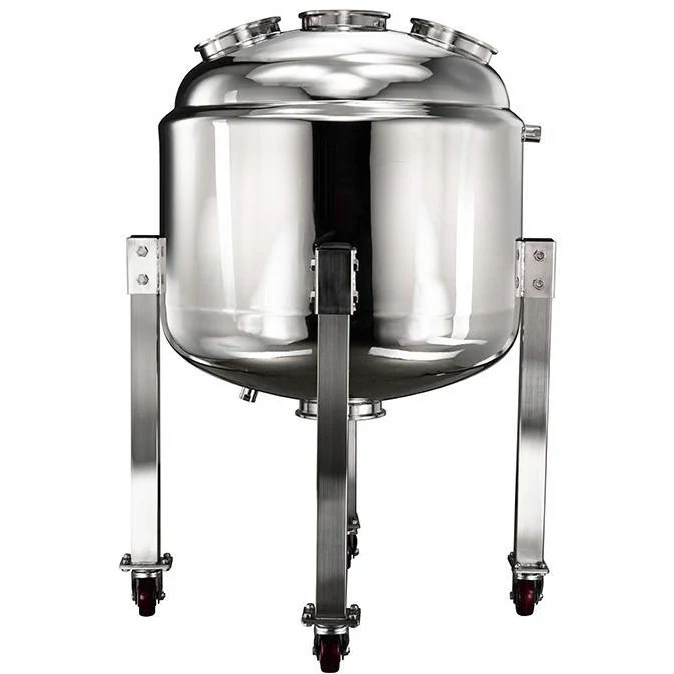

150L 304SS Jacketed Collection and Storage Vessel with Three 6" Tri-Clamp Port and Locking Casters

150L 304SS Jacketed Collection and Storage Vessel with Locking Casters

This massive 304 Stainless Steel Jacketed vessel can hold up to 150L of water (~40 gallons) and has a (3) 6" Tri-Clamp/ Tri Clover ports on the top and a 6" Tri-Clamp port on the bottom of the vessel. The outer jacket has 2x 1/2" FNPT ports to allow the circulation of heat transfer fluids and can also be used a vacuum jacket and can hold 21.5L or 5.68 gallons of fluid in the outer jacket. This unit also features 4 stainless steel legs with locking casters to allow the vessel to be moved around easily including 32" and wider doorways.  (Note: this unit comes bare and does not include any fittings besides the legs with casters.)

BVV™ 150LR - Technical Drawing

Specifications
Material	304 Stainless Steel
Pressure Rating	250 PSI MAX Outer Jacket Rating: 100 PSI
Connection Type(s):	(3) 6" Tri-Clamp Top Ports
	6" Tri-Clamp Bottom Port
	(2) 1/2" FNPT Ports on the jacket

 *High Pressure Clamps are required when using pressure greater than 100 PSI

***Note: This item will ship via freight ONLY.
